Double Torsion Springs

Double Torsion Springs

Torsion springs can be used to neutralize, lift, rotate, and or center rotating loads or torques.

  • Wire sizes from .008" to .625"
  • Wide variety of leg lengths, shapes, anchoring configurations and coil diameters.
  • Multiple end configurations
  • Pitched and Tight wound capabilities
  • Tight angle tolerances available

Double Torsion Springs

Torsion springs can be used to neutralize, lift, rotate, and or center rotating loads or torques. At WCS, Double Torsion Springs are produced in our advanced manufacturing facility. A wide variety of leg lengths, shapes, anchoring configurations and coil diameters are available to meet your torsion spring application.

Common applications are: forage and harvesting, baler pickups, tillage equipment, lift gates and more.

Improve Life of Your Spring

Winamac Coil Spring offers custom in-house shot peening for double and single torsion, compression and/or extension springs to improve fatigue life for the most demanding requirements.

*Torque output calculations are double for double torsion springs

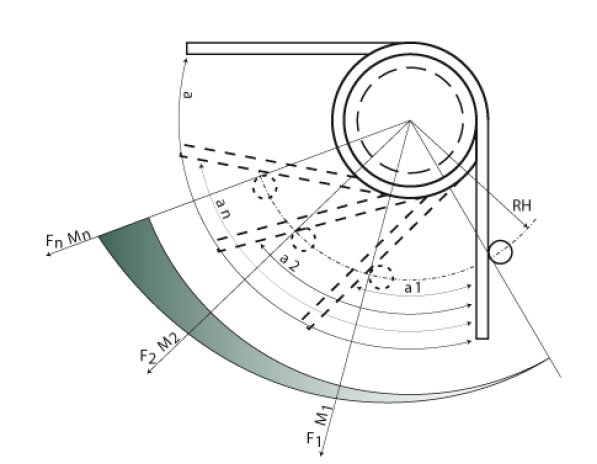

Torsion

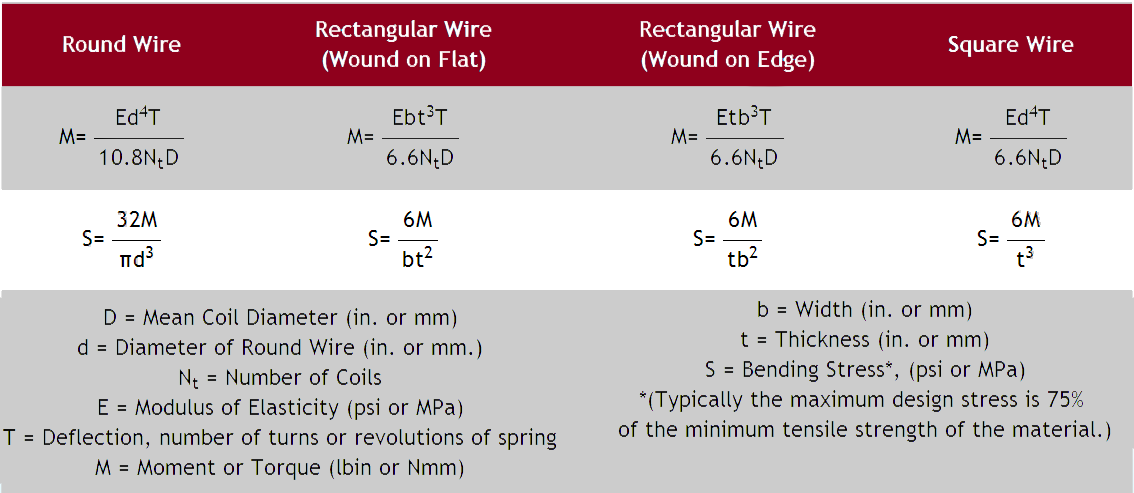

formula

Tord – Round Standard

Round Standard

Tord Tapered – Round Staple

Square Staple

Tord Tapered – Square Staple

Square Staple
